GLI-GFD2 – LED 2″ Gimbal Flush Downlight

LED 2" Gimbal Flush Downlight

LED 2” Gimbal Flush Downlight is a highly versatile recessed downlight designed for both commercial and residential applications. With a full 360° rotation and 30° tilt capability, this fixture offers precise light direction and accent illumination. Featuring field-selectable CCT, an easy snap-in installation system, and durable die-cast aluminum construction, this downlight ensures reliability and efficiency in a compact form.

Certifications:

https://goled.lighting/wp-content/uploads/2025/03/Screenshot-2025-03-18-091347.png
  • Specifications
  • Add to Project

Lighting:

Tilt and Rotation:
Full 360° rotation and 30° tilt for adjustable lighting direction
Selectable CCT options:
2700K, 3000K, 3500K, 4000K, 5000K
High CRI Options:
90CRI (standard), 97CRI (optional)
Luminous Efficacy:
80LM/W
Lumen Output:
400LM (5W model)

Installation:

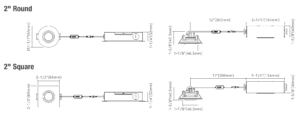

Size:
2 Inches Round and Square
arrow up

Mounting options:
No housing required, IC-rated for direct insulation contact
New construction rough-in frames available
arrow up

Spring mounting clips ensure secure and gap-free installation
Quick snap-in installation process for reduced labor time

Electrical:

Wattage:
5W
Voltage Compatibility:
120V AC, 50/60 Hz
Dimming Options:
TRIAC/ELV dimmable (10% - 100%)
Driver Cable Options:
Standard FT1-rated cable, Optional FT4 and FT6-rated cables

Details & Accessories:

Die-cast aluminum body enhances cooling and extends lifespan
Reflector & Trim Options:
Round Smooth Reflector (RS), Square Smooth Reflector (SS)
Trim Finish Colors:
Matte White (WH), Matte Black (BK), Bronze (BZ), Brushed Nickel (BN)
Extension Cable Accessories:
6’, 10’, and 20’ extension cable options available

Certifications:

cETLus Classified
Wet Location Rated, IC-Rated for direct contact with insulation

Warranty & Lifespans:

5-year warranty
Estimated lifespan of over 50,000 hours

Resources

Technical Specs

file View
GLI-GFD2.pdf
download

Install Manual

file View
GLI-GFD2-Install-Manual.pdf
download

.IES Files

file View
GLI-GFD2-5-5SK-XX-V1-SS.zip
download
file View
GLI-GFD2-5-5SK-XX-V1-RS.zip
download
