GLI-GFD4 – LED 4” Gimbal Flush Downlight

LED 4” Gimbal Flush Downlight

LED 4” Gimbal Flush Downlight is a highly versatile, high-performance recessed downlight designed for residential, commercial, and hospitality applications. With a full 360° rotation and 30° tilt, this fixture provides precise directional lighting with easy, snap-in installation. Engineered for energy efficiency and flexibility, the GLI-GFD4 minimizes installation time and enhances illumination control.

Certifications:

https://goled.lighting/wp-content/uploads/2025/03/Screenshot-2025-03-18-095731-1.png
  • Specifications
  • Add to Project

Lighting:

Tilt and Rotation:
30° tilt and 360° rotation provides unparalleled freedom of movement
Selectable CCT options:
2700K, 3000K, 3500K, 4000K, 5000K
Highly durable die-cast aluminum body provides effective cooling
High CRI Options:
90CRI (standard), 97CRI (optional)
Luminous Efficacy:
83LM/W
Lumen Output:
1000LM (12W model)

Installation:

Mounting options:
Spring mounting clips ensure gap-free, secure placement; No housing required
New Construction Compatibility:
New construction rough-in plates available

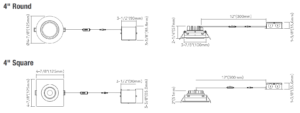

SIze
4inch Round and Square
arrow up

Universal rough-in frame for multi-size configurations (2.5", 4", and 6")
arrow up

Quick and simple installation process with snap-in design

Electrical:

Wattage:
12W
Voltage Compatibility:
120V, 120-347V
Dimming Options:
TRIAC/ELV dimmable (10% - 100%), Optional 0-10V dimming
Driver Cable Options:
Standard FT1-rated cable, Optional FT4 and FT6-rated cables

Details & Accessories:

Die-cast aluminum body ensures effective cooling and durability
Reflector & Trim Options:
Round Smooth Reflector (RS), Square Smooth Reflector (SS)
Trim Finish Colors:
Matte White (WH), Matte Black (BK), Bronze (BZ), Brushed Nickel (BN)
Extension Cable Accessories:
6’, 10’, and 20’ extension cable options available

Certifications:

cETLus Classified
Wet Location Rated, IC-Rated for direct contact with insulation

Warranty & Lifespans:

5-year warranty
Estimated lifespan of over 50,000 hours

Resources

Technical Specs

file View
GLI-GFD4.pdf
download

Installation Manual

file View
GLI-GFD4-Install-Manual.pdf
download

.IES Files

file View
GLI-GFD4-12-5SK-XX-V1-SS.zip
download
file View
GLI-GFD4-12-5SK-XX-V1-RS.zip
download
