GLI-JBWDL – Junction Box Wattage Selectable Downlight

Junction Box Wattage Selectable Downlight

The GLI-JBWDL Junction Box Wattage Selectable Downlight is a versatile, contractor-friendly recessed lighting solution designed for commercial, residential, and hospitality applications. Featuring field-selectable wattage and CCT, an integrated junction box, and high-efficiency LED technology, this fixture provides flexibility and ease of installation without requiring recessed housing.

Certifications:

https://goled.lighting/wp-content/uploads/2025/03/Screenshot-2025-03-19-192206.png
  • Specifications
  • Add to Project

Lighting:

High-diffusion lens for glare-free illumination
Selectable CCT options:
2700K, 3000K, 3500K, 4000K, 5000K
High CRI of 80+ for accurate color rendering
Luminous Efficacy:
Standard Output: 100LM/W, High Output: 120LM/W
Lumen Output:
4” Model: 600LM-1600LM (6W, 8W, 10W, 12W, 16W); 6” Model: 1200LM-3000LM (12W, 16W, 22W, 26W, 30W); 8” Model: 1600LM-3500LM (16W, 22W, 26W, 30W, 35W); 10” Model: 2200LM-4000LM (22W, 26W, 30W, 35W, 40W)

Installation:

Mounting options:
Junction box-integrated design eliminates the need for recessed housing; Spring clips for quick and secure installation; T-grid and joist ceiling plate accessories available

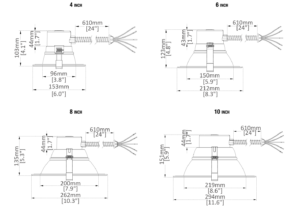

Available Sizes:
4”, 6”, 8”, and 10” models
arrow up

IC-Rated:
Suitable for insulated ceilings

Electrical:

Selectable Wattage Options:
4” Model: 6W, 8W, 10W, 12W, 16W; 6” Model: 12W, 16W, 22W, 26W, 30W; 8” Model: 16W, 22W, 26W, 30W, 35W; 10” Model: 22W, 26W, 30W, 35W, 40W
Voltage Compatibility:
120V-277V and 120V-347V driver options
Dimming Options:
0-10V dimmable
High Power Factor:
≥0.9 for energy-efficient performance

Details & Accessories:

Aluminum housing acts as a heat sink for maximum lifespan
Spun aluminum reflector with haze finish and white trim ring
Finish Options:
White or Black
Optional Features:
Battery backup for emergency lighting
Mounting Accessories:
Goof rings for 4”, 6”, 8”, and 10” models, T-grid and joist ceiling plates, Safety lanyard for additional support

Certifications:

cULus Classified
Wet Location Rated, IC-Rated for direct contact with insulation

Warranty & Lifespans:

5-year limited warranty
Estimated lifespan of over 50,000 hours

Resources

Technical Specs

file View
GLI-JBWDL-Junction-Box-Integrated-Wattage-Selectable-Downlight.pdf
download

Installation Manual

file View
GLI-JBWDL-Junction-Box-Wattage-Selectable-Downlight-Installation-Manual.pdf
download

.IES Files

file View
GLI-JBWDL-10inch-SO-100LmW.zip
download
file View
GLI-JBWDL-10inch-HO-120LmW.zip
download
file View
GLI-JBWDL-8inch-SO-100LmW.zip
download
file View
GLI-JBWDL-8inch-HO-120LmW.zip
download
file View
GLI-JBWDL-6inch-SO-100LmW.zip
download
file View
GLI-JBWDL-6inch-HO-120LmW.zip
download
file View
GLI-JBWDL-4inch-SO-100LmW.zip
download
