Lighting:
Thin, 8mm (5/16”) low-profile LED sheet
Beam Angle:
120° wide beam for even illumination
Selectable CCT options:
2700K, 3000K, 4000K, 5000K, 6500K
High CRI of 90 for superior color accuracy
Luminous Efficacy:
90 - 100 LM/W depending on CCT
Lumen Output:
2120LM - 2350LM per sheet
Installation:
Mounting options:
Flexible sheet can be wrapped around curved surfaces, Compatible with aluminum profiles for architectural lighting

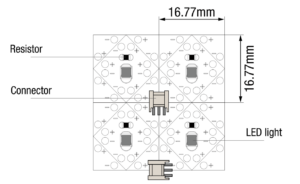

Cutting Intervals:
16.77mm (21/32”) x 16.77mm (21/32”) for precise customization
IP Ratings:
IP20 for indoor applications, IP65 for outdoor and wet location use
Linkable Configuration:
Up to 5 sheets can be linked together for a total of 118W
Silicone Sealing Required:
Connections and cut edges must be sealed with silicone for IP65 compliance
Electrical:
Power Consumption:
23.5W per sheet
Voltage Compatibility:
24V DC operation
Driver Options:
DALI, DMX, 0-10V control options, Indoor and outdoor driver configurations available
Details & Accessories:
Durable and lightweight design for versatile applications
Available finishes:
Aluminum profiles for heat dissipation
Jumper cables available for seamless linking
Certifications:
cULus Listed
IP20, IP65 Rated
Warranty & Lifespans:
5-year warranty
Estimated lifespan of over 50,000 hours
To add product to your project,
please sign up first
please sign up first
Resources
Technical Specs
GLI-LFSD-LED-Flex-Sheet-D.pdf
Installation Manual
GLI-LFSD-LED-Flex-Sheet-D-Installation-Manual.pdf
.IES Files
IES-GLI-LFSD-LED-Flex-Sheet-D.zip
