Lighting:
Optics & Light Distribution:
100% Downlight (Direct), 70% Down / 30% Up (Direct + Indirect)

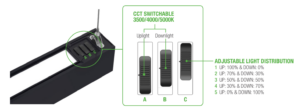

Adjustable light distribution settings:
100% Up / 0% Down, 70% Up / 30% Down, 50% Up / 50% Down, 30% Up / 70% Down, 0% Up / 100% Down
Luminous Efficacy:
99-101 LM/W
Lumen Output:
2ft models: 1775LM - 2425LM, 4ft models: 3550LM - 4925LM
CRI Options:
80+ and 90+
Selectable CCT options:
3000K, 3500K, 4000K, 5000K
Installation:
Seamless continuous connection system for linked installations
Mounting options:
Pendant (Up, Down, Up & Down), Surface Mount, Recessed Mount, Wall Mount (Up, Down, Up & Down)
Available in multiple lengths:
2ft and 4ft, (8ft missing in spec)
Mounting accessories available:

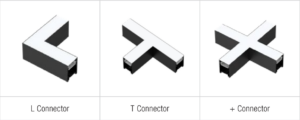

Straight, L, T, and + Connectors; Cuttable Flexible Cover; Round & Square Canopy with Power Cable; Microwave Motion Sensor (Merrytek); Emergency Battery Backup
Electrical:
Selectable wattage:
2ft models (18W - 25W), 4ft models (36W - 50W)
Voltage compatibility:
120V-277V
High power factor:
≥0.9
Standard 0-10V dimming:
100% to 1%
Details & Accessories:
Available finishes:
Silver, White, Black
Extruded aluminum housing with excellent heat dissipation
Premium optics available in 30m roll for linked installations
Certifications:
cULus Listed
Damp Location Rated
Warranty & Lifespans:
5-year, 50,000+ hours
To add product to your project,
please sign up first
please sign up first
Resources
Technical Specs
GLI-LP57U_Linear_Profile.pdf
Installation Manual
GLI-LP57U-Linear-Profile-LED-Installation-Manual.pdf
.IES Files
IES-GLI-LP57U-2feet-18W-Direct-Light.zip
IES-GLI-LP57U-2feet-25W-Direct-Indirect-Light.zip
IES-GLI-LP57U-4feet-36W-Direct-Light.zip
IES-GLI-LP57U-4feet-50W-Direct-Indirect-Light.zip
